G5 Voodoo Neo 4 Bundle | ECU + DI Driver-4 Module

Description

G5 Voodoo Neo 4 + DI Driver-4 Bundle
Direct Injection ECU Bundle for 4-Cylinder Builds

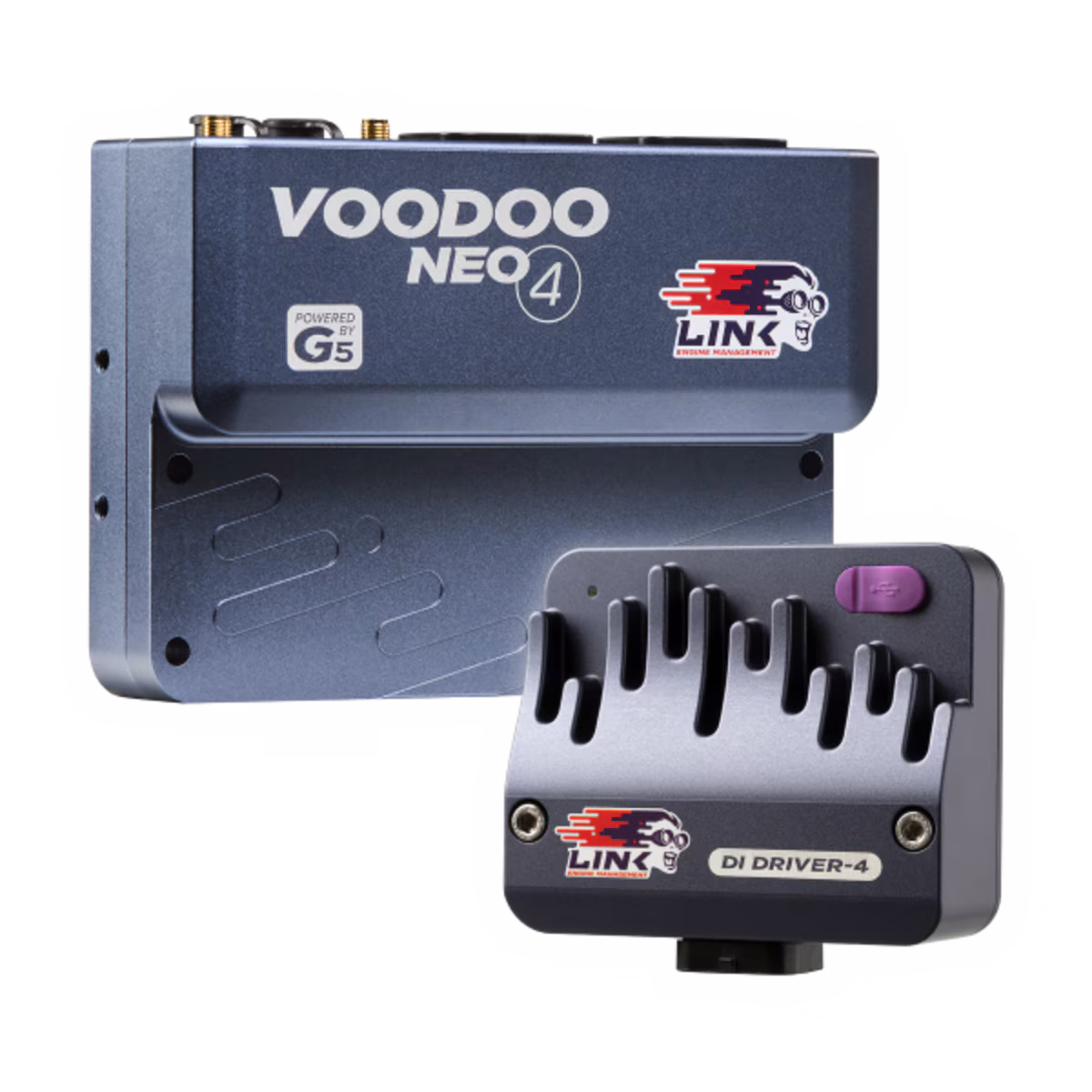

The G5 Voodoo Neo 4 Bundle pairs the compact yet powerful Neo 4 ECU with the DI Driver-4 module, creating a complete solution for 4-cylinder direct injection engines. Built for tuners and motorsport applications, this package offers advanced functionality and reliability in a compact form factor.

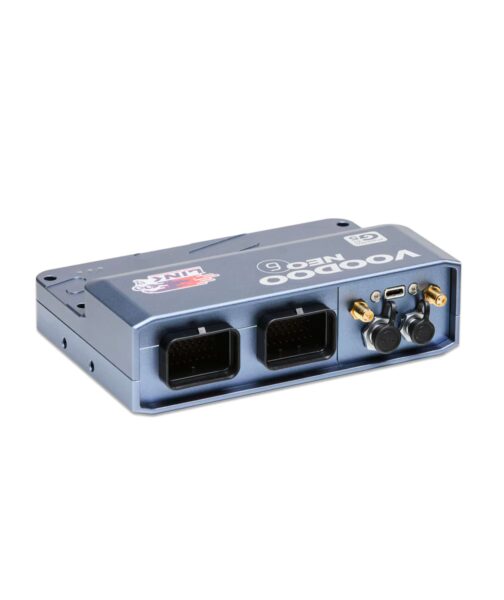

G5 Voodoo Neo 4 ECU

The Neo 4 is designed for flexible engine management, capable of running:

4-cylinder direct injection or staged DI/port injection with direct spark

6-cylinder port or direct injection with spark control

Key ECU Features

Built-in wideband controller for accurate AFR monitoring

Dual H-Bridge e-throttle outputs

1GB onboard logging (100kHz, up to 250 channels)

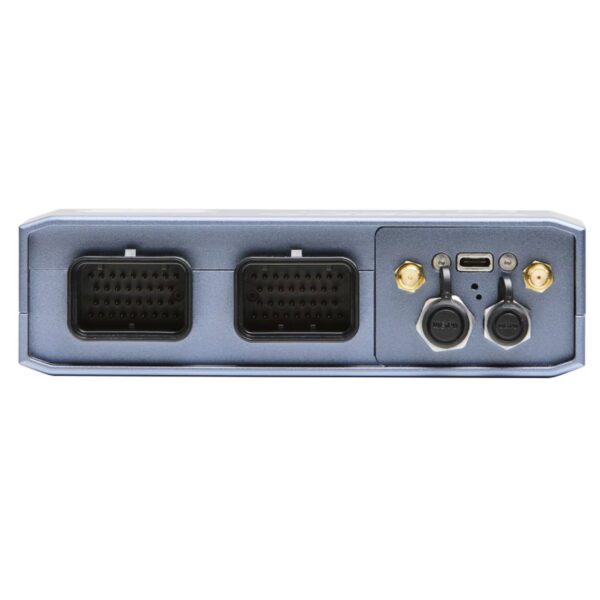

Connectivity options: USB-C, Wi-Fi, Ethernet, GPS, and CAN

I/O capability:

8 injector outputs

6 ignition outputs

12 auxiliary outputs

6 flexible ADIO pins (multi-purpose inputs/outputs)

CNC-machined sealed enclosure with versatile mounting options

Runs on PC Link software, compatible with both G4X and G5

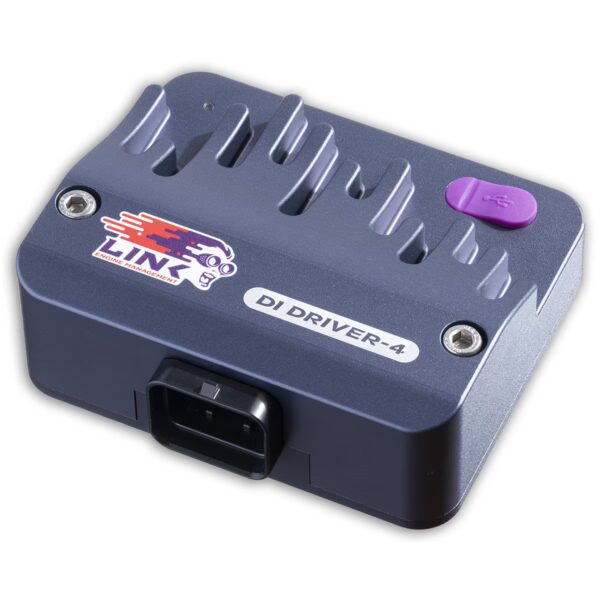

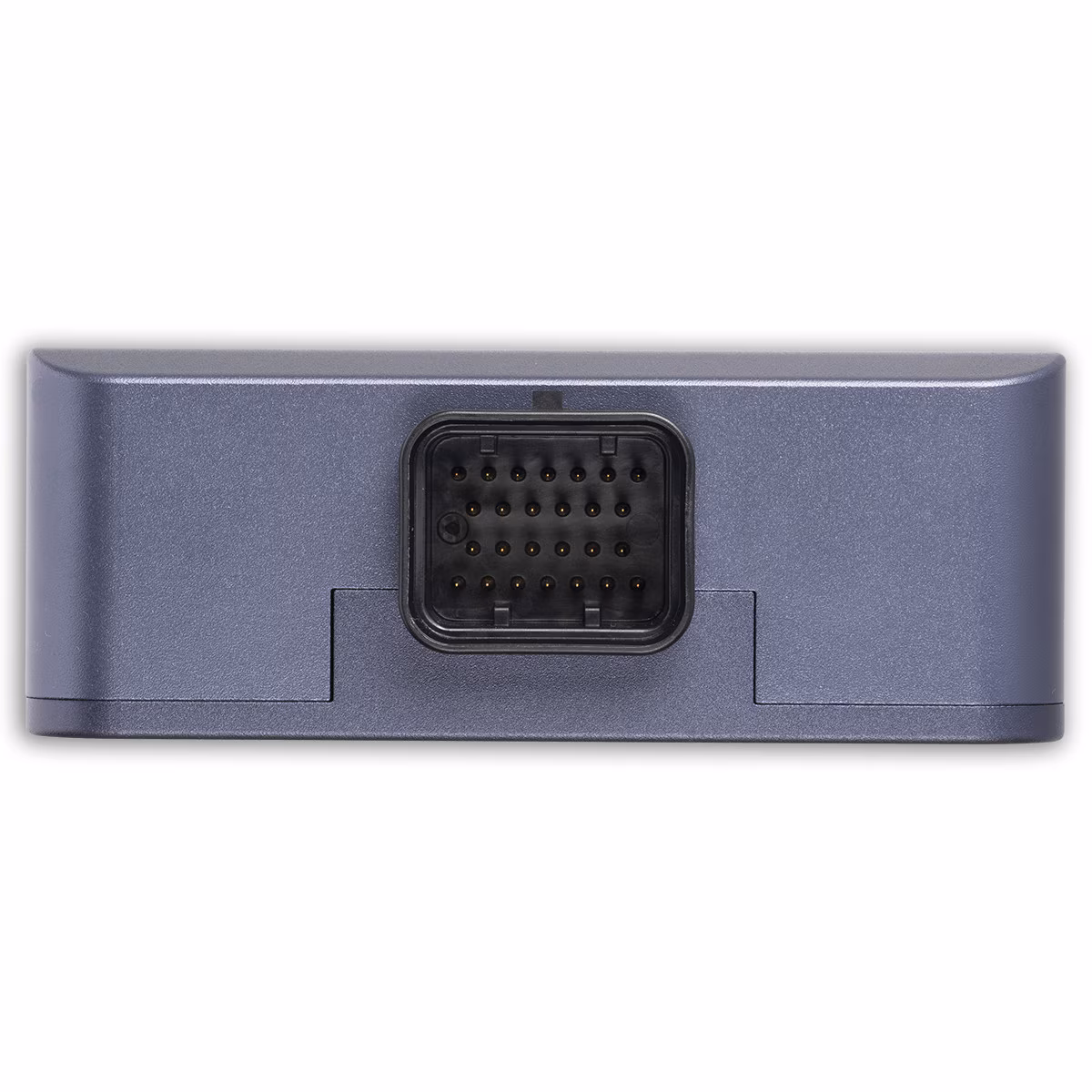

DI Driver-4 Module

The included DI Driver-4 provides expanded direct injection capability:

Controls up to 4 direct injectors plus 1 high-pressure fuel pump

CAN-based scalability for multi-module setups

Rugged, sealed CNC enclosure for reliability in motorsport environments

USB configuration for easy setup

Works seamlessly with Link’s injector characterisation tools

Bundle Highlights

Complete direct injection ECU package for 4-cylinder builds

Includes G5 Voodoo Neo 4 ECU + DI Driver-4 module

Advanced logging, dual e-throttle, and wideband support built-in

Multiple connectivity options for quick setup and tuning

Compact, sealed hardware built for motorsport use

In the Box

1 × G5 Voodoo Neo 4 ECU

1 × DI Driver-4 Module

USB-C connection cable

Wi-Fi antenna

4m GPS antenna (magnetic/adhesive mount)

Dust covers

QuickStart guide (A5)

Installer I/O table (A3)

Link stickers

Installation Services:
For professional setup and tuning of your G5 Voodoo Neo 4 Bundle, contact ProTect Auto at 0800 4665 48. Our experts provide wiring, programming, and calibration to maximise performance.
