G5 Voodoo Neo 6 Bundle | ECU + 2 DI Driver-4 Modules

Description

G5 Voodoo Neo 6 + 2 x DI Driver-4 Bundle
High-Performance Direct Injection ECU Package

The G5 Voodoo Neo 6 Bundle combines the advanced capabilities of the Neo 6 ECU with two DI Driver-4 modules, providing full control for direct injection and staged injection builds. Designed for serious motorsport and high-performance applications, this package delivers flexibility, speed, and reliability for tuners who demand the best.

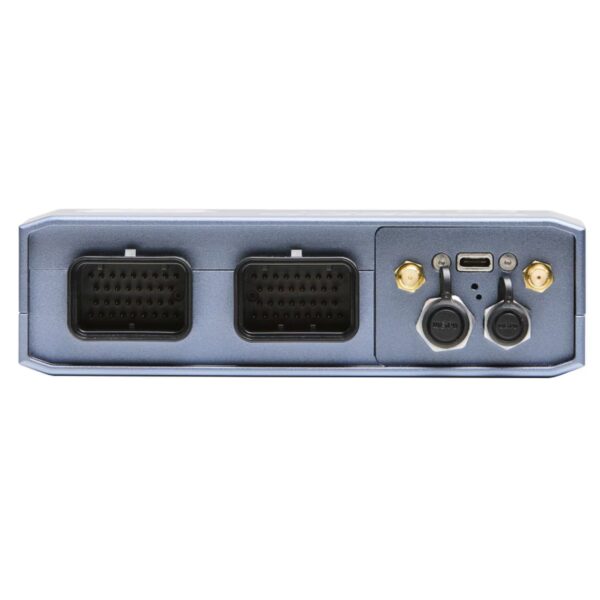

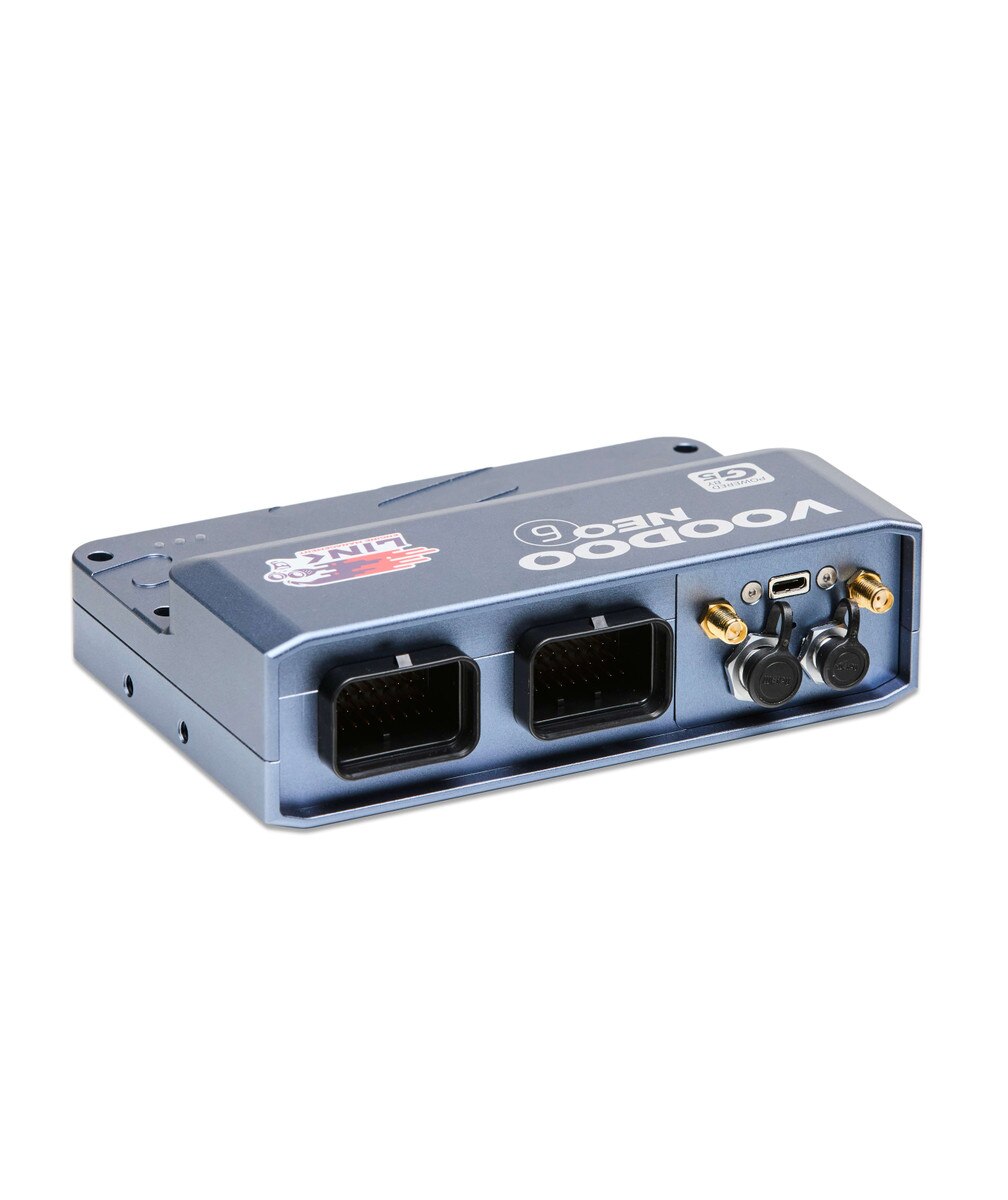

G5 Voodoo Neo 6 ECU

The Neo 6 is engineered for power and versatility, capable of running:

8-cylinder port or direct injection with advanced spark control

6-cylinder staged port/direct injection with direct spark

Key ECU Features

Built-in wideband controller for precision air-fuel tuning

Dual H-Bridge e-throttle outputs

1GB onboard logging (up to 100kHz, 250 channels)

Connectivity options: USB-C with power-over-USB, Wi-Fi, Ethernet, and GPS

Robust I/O:

12 injector outputs (4 DI capable)

8 ignition outputs

6 auxiliary outputs

6 flexible ADIO pins

CNC-machined sealed enclosure with versatile mounting options

Runs on PC Link software, compatible with G4X and G5 maps

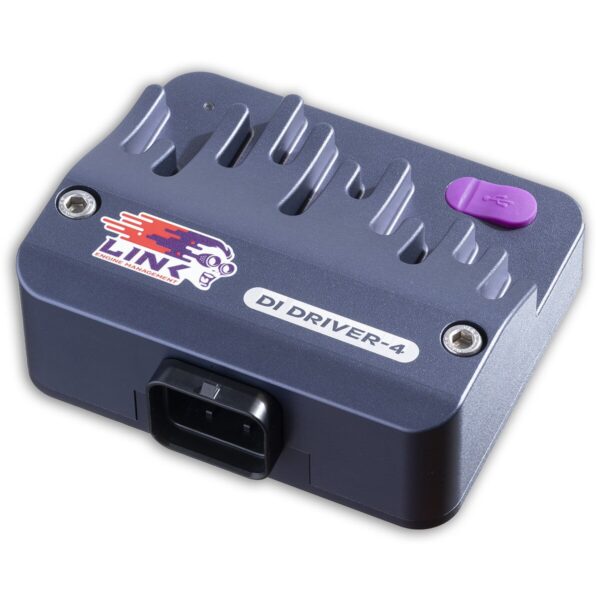

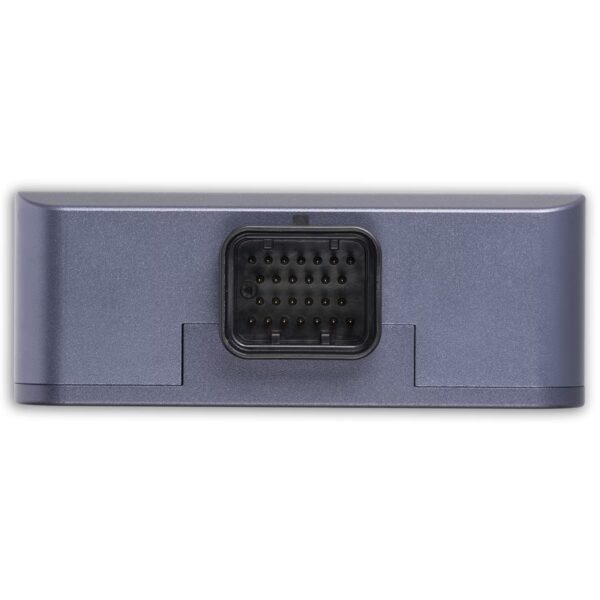

DI Driver-4 Modules (x2)

Each DI Driver-4 module supports:

4 direct injectors plus 1 high-pressure fuel pump

Rugged, sealed CNC-machined enclosure

USB setup and CAN scalability for multiple-module setups

Supported by Link’s injector characterisation tools

This bundle includes two DI Driver-4s, allowing management of up to 8 direct injectors and 2 high-pressure fuel pumps, making it ideal for complex DI setups.

Key Highlights of the Bundle

Full direct injection ECU package

Includes G5 Voodoo Neo 6 ECU + 2 x DI Driver-4 modules

Built-in wideband, dual e-throttle, and advanced logging

Wi-Fi, Ethernet, USB-C, and GPS connectivity

Professional motorsport features and robust hardware

In the Box

1 × G5 Voodoo Neo 6 ECU

2 × DI Driver-4 Modules

USB-C connection cable

Wi-Fi antenna

4m GPS antenna (magnetic/adhesive mount)

Dust covers

QuickStart guide (A5)

Installer I/O table (A3)

Link stickers

Installation Services:
For expert installation and tuning of your G5 Voodoo Neo 6 Bundle, contact ProTect Auto at 0800 4665 48. Our team can provide wiring, setup, and calibration to help you achieve maximum performance.
